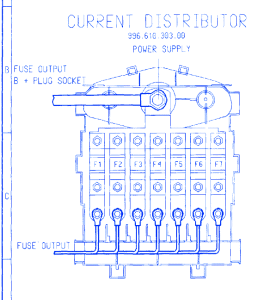

Porsche Boxter 2003 Main Fuse Box/Block Circuit Breaker Diagram

Porsche Boxter 2003 Main Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolRatingFuse Map
F150APSM
F280AOn Board Comp Network 1
F380AOn Board Comp Network 2
F480AIgnition Lock
F580AEngine Electrics
F680AOn Board Comp Network 3
F750APSM

Porsche Boxter 2003 Main Fuse Panel/Board – Fuse Symbol Map
