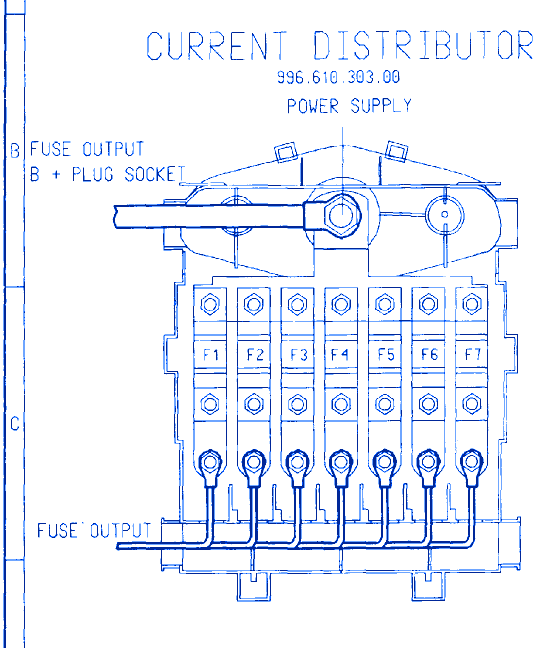

Porsche Boxter 2005 Main Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Rating | Fuse Map | ||
|---|---|---|---|---|
| F1 | 50A | PSM | ||
| F2 | 80A | On Board Comp Network 1 | ||
| F3 | 80A | On Board Comp Network 2 | ||
| F4 | 80A | Ignition Lock | ||
| F5 | 80A | Engine Electrics | ||
| F6 | 80A | On Board Comp Network 3 | ||
| F7 | 50A | PSM | ||
Porsche Boxter 2005 Main Engine Fuse Panel/Board – Fuse Symbol Map
