| Number | Ampere rating [A] | Description |
|---|---|---|
| F1 | 30A | Passenger compartment fuse and relay box protected + battery feed – UCH |
| F2 | 350A | Petrol engines: + protected starter battery – alternator – power feed fuse board – switching and protection unit |
| F2 | 400A | Diesel engines: + protected starter battery – alternator – power feed fuse board – switching and protection unit |
| F3 | 30A | + engine function protected battery via protection and switching unit |

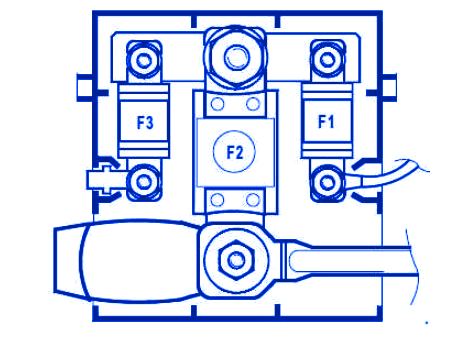

Renault Megane 2003 Battery Terminal Fuse Panel / Board – Fuse Symbol Map
