| Number | Ampere rating [A] | Description |
|---|---|---|
| F1 | 40 | K9K724: 460 Watt engine cooling fan |
| 60 | K9K732: 550 Watt engine cooling fan | |
| F2 | 70 | Preheating unit |
| F3 | 20 | F9Q: Diesel filter heater relay |
| F4 | 70 | Passenger compartment fuse and relay box |
| F5 | 50 | ABS computer |
| F6 | 70 | Electric power assisted steering system or Additional heater relay 2 |
| F7 | 40 | Auxiliary heater relay 1 |
| F8 | 60 | Passenger compartment fuse and relay box |
| F9 | 70 | Auxiliary heater relay 2 or Electric power-assisted steering system |

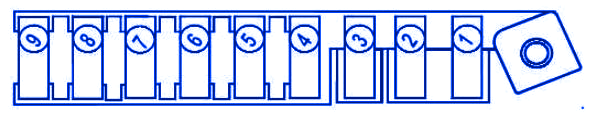

Renault Megane 2003 Engine Fuse Panel / Board – Fuse Symbol Map
