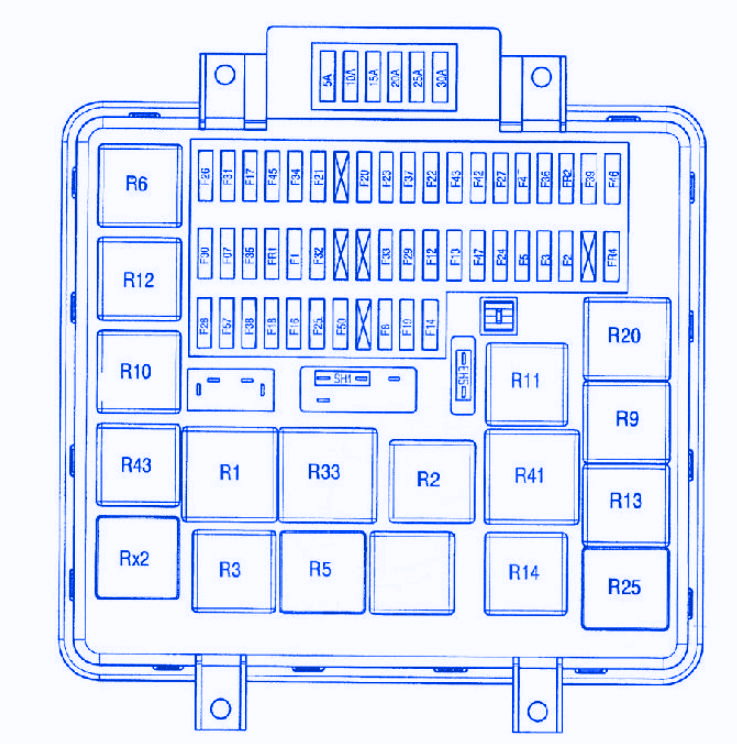

Renault Midlum 2005 Fuse Box / Block Circuit Breaker Diagram
Renault Midlum 2005 Fuse Box / Block Circuit Breaker Diagram
Fuse Ampere riting [A] Description 1 15 Trailer socket 7-pin (“ABS”)
Trailer socket, 7-pin type 24 S
Stop lights relay 2 10 Front side/parking lights
RH rear side/parking lights
Registration plate RH light
Voltage dropper (headlamps adjustment) 3 10 Marker lights
LH rear side/parking lights
Registration plate LH light
Dashboard instruments lighting
Switch lighting 4 10 Trailer side/parking lights 5 10 Available power supply (lighting) 7 10 Jake brake electrovalves
Engine stop control
Fuel filter clogging
“EUP” ECU 8 15 Fog light(s)
Fog driving lights 12 10 RH dipped beam headlight 13 10 LH dipped beam headlight 14 15 RH main beam headlight
LH main beam headlight
Long beam driving lights 16 10 Dashboard warning lights and instruments power supply
Electric or hydraulic retarder control
Exhaust brake electrovalve
“ABS-ASR” ECU 17 20 Heated driver’s seat
Voltage dropper (12V socket)
Voltage dropper (telecommunications) 18 15 Fan coil heaters 19 25 Fuel filter preheater 20 20 Revolving beacons
Roof air vent motor
Renault Midlum 2005 Fuse Panel / Board – Fuse Symbol Map
Fuse Ampere riting [A] Description 21 10 Power supply (after master switch) 22 20 Independent heater AT 2000 23 10 Driver’s overhead light
Passenger(s) overhead light 24 20 Driver’s window winder motor
Passenger’s window winder motor 25 5 Tachograph clock 26 15 Horn 27 10 Stop lights 28 15 “ABS” ECU
Electric retarder cut-off relay 29 10 Defrosting rearview mirrors
Windscreen defrosting time-delay relay 30 10 Cigar lighter
Radio 31 20 Socket 24 Volts
Voltage dropper (extra 12V socket) 32 20 Windscreen wiper speed controller
Windscreen washer pump
Headlamps washer pump
Windscreen wiper motor 33 20 Diagnostics socket
Suspension ECU 34 15 Radio tuner memory power supply
Independent heater AT 2000
Flasher unit 35 — — 36 20 Trailer socket 7-pin (“ABS”) 37 15 LH door lock electric striker
RH door lock electric striker
External rearview mirrors swivelling control
Step light
LH rear door overhead light
RH rear door overhead light 38 25 “EUP” ECU 39 10 Automatic gearbox ECU 42 10 Automatic gearbox ECU power supply
Renault Midlum 2005 Fuse Panel / Board – Fuse Symbol Map
Fuse Ampere riting [A] Description 43 10 Loading floodlight (tractor)
Trailer socket, 7-pin type 24 S
Bodybuilder equipment control
Gate valves illumination control
Exhaust brake cut-off relay 45 10 Doors central locking box 46 15 Fuel preheater relay
Reversing lamp(s)
Reversing buzzer
Rearview mirrors defrosting relay 47 10 Suspension ECU
Suspension remote control box 50 — — 52 10 Windscreen wiper time-delay relay 57 15 “EUP” VECU ECU
Electronic tachograph
Renault Midlum 2005 Fuse Panel / Board – Fuse Symbol Map
Symbol Relay Map Relay R1 After ignition power supply relay No. 1 R2 Power after ignition relay R3 Windscreen wiper safety relay R5 Side / parking lights relay R6 Comfort accessories relay R9 Fog lights relay R10 Fog driving lights relay R11 Dipped beam headlights relay R12 Main beam headlights relay R13 Long range driving lights R14 Stop lights relay R18 Electric retarder cut-off relay R20 Rearview mirrors and windscreen defrosting relay R23 Revolving beacon(s) relay R25 Windscreen wiper relay R33 Starting relay R41 Fuel preheater relay R43 “VECU / EECU” ECU power supply relay
