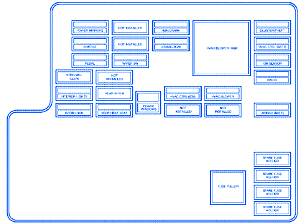

Saturn Aura 2007 Fuse Box/Block Circuit Breaker Diagram

Saturn Aura 2007 Fuse Box/Block Circuit Breaker Diagram



No.FuseUsage
1POWER MIRRORSPower Mirrors
2NOT INSTALLEDNot Used
3RUN/CRANKCruise Control Switch, Passenger Airbag Status Indicator
4HVAC BLOWER HIGHNVAC Blower High Speed Relay
5CLUSTER/THEFTInstrument Panel Cluster, Theft Deterrent System
6ONSTAROnstar
7NOT INSTALLEDNot Used
8AIRBAG (IGN)Airbag (Ignition)
9HVAC CTRL (BATT)HVAC Control Diagnostic Link Connector (Battery)
10PEDALAdjustable Pedals
11WIPER SWWindshield Wiper/Washer Switch
12IGN SENSORIgnition Switch
13STRG WHL ILLUMSteering Wheel Illumination
14NOT INSTALLEDNot Used
15RADIOAudio System
16INTERIOR LIGHTSInterior Lamps
17REAR WIPERNot Used
18POWER WINDOWSPower Windows
19HVAC CTRL (IGN)HVAC Control (Ignition)
20HVAC BLOWERHVAC Switch
21DOOR LOCKDoor Locks
22ROOF/ HEAT SEATSunroof, Power Window
23NOT INSTALLEDNot Used
24NOT INSTALLEDNot used
25AIR BAG (BATT)Airbag (Battery)
26SPARE FUSE HOLDERSpare Fuse Holder
17SPARE FUSE HOLDERSpare Fuse Holder
28SPARE FUSE HOLDERSpare Fuse Holder
29SPARE FUSE HOLDERSpare Fuse Holder
30FUSE PULLERFuse Puller

Saturn Aura 2007 Fuse Panel/Board – Fuse Symbol Map
