Saturn Sky 2009 Engine Control Fuse Box/Block Circuit Breaker Diagram
| Fuses | Usage | ||||
|---|---|---|---|---|---|
| 1 | Fuse Puller | ||||
| 2 | Empty | ||||
| 3 | Empty | ||||
| 4 | Empty | ||||
| 5 | Empty | ||||
| 6 | Amplifier | ||||
| 7 | Cluster | ||||
| 8 | Ignition Switch, Passkey III+ | ||||
| 9 | Stoplamp | ||||
| 10 | Climate Control System, Passkey III+ | ||||
| 11 | Empty | ||||
| 12 | Spare | ||||
| 13 | Airbag | ||||
| 14 | Spare | ||||
| 15 | Wiper | ||||
| 16 | Climate Control System, Automatic Occupant Sensing Module, Clutch Switch, Crank Relay, Instrument Panel Cluster | ||||
| 17 | Empty | ||||
| 18 | Empty | ||||
| 19 | Electric Power Steering, Steering Wheel Controls | ||||
| 20 | Spare | ||||
| 21 | Spare | ||||
| 22 | Empty | ||||
| 23 | Radio | ||||
| 24 | Sensing and Diagnostic Module | ||||
| 25 | Engine Control Module, Transmission Control Module | ||||
| 26 | Door Locks | ||||
| 27 | Interior Lamps | ||||
| 28 | Steering Wheel Control Backlighting | ||||
| 29 | Power Windows | ||||
| 30 | Climate Control System | ||||
| 31 | Empty | ||||
| 32 | Retained Accessory Power | ||||

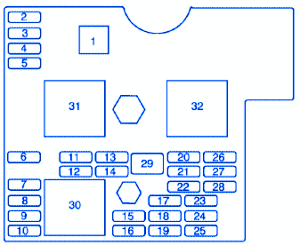

Saturn Sky 2009 Engine Control Fuse Panel/Board – Fuse Symbol Map
