NumberAmpersFused function
110LH dip beam and adjuster
210RH dip beam and adjuster
310Number plate light
415Rear screen wiper
515Windscreen wash/wipe
620Fresh air fan, air conditioning
710RH sidelight and rear light, engine compartment lighting
810LH sidelight and rear light
920Heated mirrors, rear window
1015Front, rear fog lamps
1110LH main beam, warning lights
1210RH main beam
1310Horn
1410Reversing lights, heated seats
1510Engine equipment
1615Instrument panel, clock, interior light, lights on buzzer
1710Indicators
1820Fuel pump, lambda probe, injectors
1930Coolant fan unit
2010Brake lights
2115Central locking, boot light, radio
2210Cigarette lighter

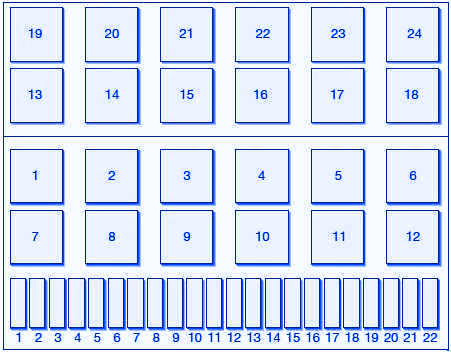

Seat Cordoba 1993 Fuse Panel / Board – Fuse Symbol Map

SymbolRelay Map
Relay
1
2Rear window wash/wipe relay
3Power supply relay
4‘X’ contact relay
5
6Hazard warning lights relay
7Headlight wiper relay
8Windscreen wash/wipe timer relay
9Lights on warning buzzer relay
10Fog lamps relay, or plug bridge
11Twin tone horn relay, or plug bridge
12Fuel pump or glow plug relay
13*
14*Central locking, with remote control (160) or relay for 2nd speed of electric fan (80)
15*Inlet manifold relay (1)
16*Electric fan 2nd speed
15Electronic terminal box relay for diesel engine control (144), turbodiesel (166)
16
17*Diesel glow plug fuse or ABS relay (178)
18*ABS relay (178) or relay for double light models (145)/(200)
19*Central locking, with remote control (160)
20*Electric windows fuse (53)
21*Engine relay (31)/electric fan 2nd speed (53)
22*Automatic transmission relay (150)
23*Diesel glow plug relay or ABS fuse
24*EDS relay (79) or Automatic transmission relay (150)
