Toyota Highlander 2003 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| 1 | IGN | 7.5A |
| 2 | SRS-IG | 15A |
| 3 | HEATER | 15A |
| 4 | IG2 | 15A |
| 5 | RADIO NO.2 | 7.5A |
| 6 | ECU-IG | 15A |
| 7 | IG1 | 7.5A |
| 8 | WASHER | 20A |
| 9 | CIG | 15A |
| 10 | WIPER | 25A |
| 11 | RR WIP | 15A |
| 12 | RR FOG | 7.5A |
| 13 | D RR DOOR | 20A |
| 14 | P RR DOOR | 20A |
| 15 | STOP | 20A |
| 16 | FR DEF | 20A |
| 17 | PWR OUTLET | 15A |
| 18 | P FR DOOR | 25A |
| 19 | OBD | 7.5A |
| 20 | D FR DOOR | 20A |
| 21 | FR FOG | 10A |
| 22 | S/ROOF | 20A |
| 23 | SEAT HTR | 15A |
| 24 | TAIL | 10A |
| 25 | PANEL | 7.5A |
| 26 | AM1 | 40A |
| 27 | PWR | 30A |

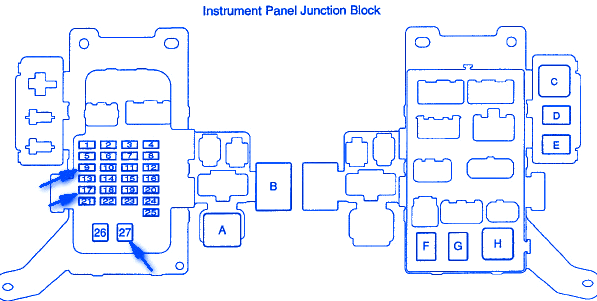

Toyota Highlander 2003 Fuse Panel/Board – Fuse Symbol Map
