Toyota Supra 1990 Electrical Instrument Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | |
|---|---|
| - | Wiper Relay |
| - | PPS ECU |
| - | ABS ECU |
| - | Engine ECU |
| - | ECT ECU |
| - | A/C Amplifier |
| - | Engine Oil Level ECU |
| - | Cruise Control ECU |
| - | A/C Auto Relay |
| - | Integration Relay No.2 |
| - | Rear Fog Lighgt Relay |
| - | Bulb Check Relay |
| - | Fog Fuse (20A) |
| - | Seat Heater Fuse (15A) |
| - | ECU-B Fuse (10A) |
| - | Integration Relay |
| - | Auto Cut Sub Relay |
| - | Fog Light Relay |

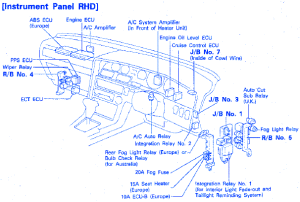

Toyota Supra 1990 Electrical Instrument Fuse Panel/Board – Fuse Symbol Map
