Toyota Supra 1995 Engine Compartment Fuse Box/Block Circuit Breaker Diagram

Toyota Supra 1995 Engine Compartment Fuse Box/Block Circuit Breaker Diagram



FUSE/RELAY MAPAMPS
RDI30A
CDS30A
HTR40A
AM230A
HEAD (LH)15A
HAZARD10A
HEAD (RH)15A
HORN7.5A
RADIO20A
ECU-B15A
DOME10A
ALT-S7.5A
SRS WRN7.5A
EFI15A
Fan Relay
Engine Main Relay
Headlight Relay
Starter Relay
EFI Main Relay

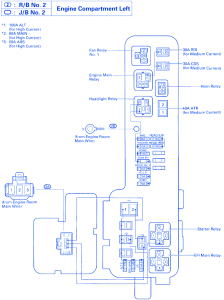

Toyota Supra 1995 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
