Toyota Supra 1999 Electrical Circuit Wiring Diagram

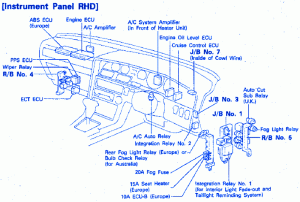

| FUSE / RELAY MAP | |
|---|---|
| -1 | Wiper Relay |
| -2 | PPS ECU |
| -3 | ABS ECU |
| -4 | Engine ECU |
| -5 | ECT ECU |
| -6 | A/ C Amplifier |
| -7 | Engine Oil Level ECU |
| -8 | Cruise Control ECU |
| -9 | A/C Auto Relay |
| -10 | Integration Relay No.2 |
| -11 | Rear Fog Lighgt Relay |
| -12 | Bulb Check Relay |
| -13 | Fog Fuse (20A) |
| -14 | Seat Heater Fuse (15A) |
| -15 | ECU-B Fuse (10A) |
| -16 | Integration Relay |
| -17 | Auto Cut Sub Relay |
| -18 | Fog Light Relay |
Toyota Supra 1999 Electrical Circuit Symbol Map
