Toyota Supra JZ 1997 Fuse Box/Block Circuit Breaker Diagram

Toyota Supra JZ 1997 Fuse Box/Block Circuit Breaker Diagram



FUSE/RELAY MAPAMPS
HEAD (RH-UPR)15A
HEAD (LH-UPR)15A
DRL7.5A
EFI No.230A
EFI No.130A
AM230A
FOG15A
HAZ HORN15A
TRAC7.5A
ALTS7.5A
DOME7.5A
HAD No.120A
HTR (for Medium Current)50A
FAN (for Medium Current)30A
ABS No.1 (for Medium Current)60A
Power (for Medium Current)60A
ABS No.2 (for Medium Current)30A
MAIN (for Medium Current)50A
Starter Relay
Headlight Relay
Heater Relay
Horn Relay
Dimmer Relay (Daytime Running Light Relay No.2)
EFI Main Relay
A/C Magnetic Clutch Relay
Fog Light Relay

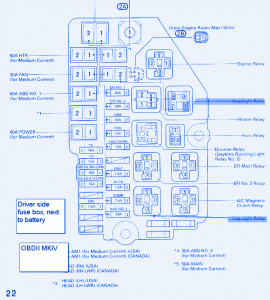

Toyota Supra JZ 1997 Fuse Panel/Board – Fuse Symbol Map
