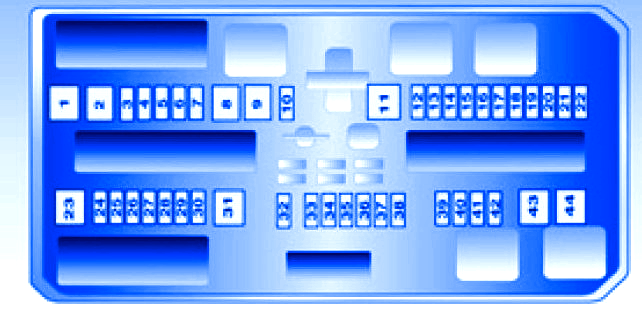

Vauxhall Astra MK6 1.6L 2012 Fuse Box/Block Circuit Breaker Diagram
| No. | Circuit | Rating |
|---|---|---|
| 19 | - | - |
| 20 | CDC | 10A |
| 21 | Heated Exterior Mirrors | 7.5A |
| 22 | Sun Roof | 25A |
| 23 | Electric Windows, Rear | 25A |
| 24 | Diagnostics Plug | 7.5A |
| 25 | - | - |
| 26 | Electrically Retractable Exterior Mirror | 7.5A |
| 27 | Ultrasonic Sensor, Vauxhall Alarm System | 5A |
| 28 | - | - |
| 29 | Cigarette Lighter, Front Socket | 15A |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | Sun Roof | 25A |
| 35 | - | - |
| 36 | Towing Equipment | 20A |
| 37 | Courtesy Light | 5A |
| 38 | Central Locking Sytem, Clamp 30 | 25A |
| 39 | Seat Heater (Left) | 15A |
| 40 | Seat Heater (Right) | 15A |
| 41 | - | - |
| 42 | - | - |
| 43 | - | - |
| 44 | - | - |
Vauxhall Astra MK6 1.6L 2012 Fuse Panel/Board – Fuse Symbol Map
