Vauxhall Insignia Primary 2007 Fuse Box/Block Circuit Breaker Diagram

Vauxhall Insignia Primary 2007 Fuse Box/Block Circuit Breaker Diagram



No.CircuitRating
19--
20CDC10A
21Heated Exterior Mirrors7.5A
22Sun Roof25A
23Electric Windows, Rear25A
24Diagnostics Plug7.5A
25--
26Electrically Retractable Exterior Mirror7.5A
27Ultrasonic Sensor, Vauxhall Alarm System5A
28--
29Cigarette Lighter, Front Socket15A
30--
31--
32--
33--
34Sun Roof25A
35--
36Towing Equipment20A
37Courtesy Light5A
38Central Locking Sytem, Clamp 3025A
39Seat Heater (Left)15A
40Seat Heater (Right)15A
41--
42--
43--
44--

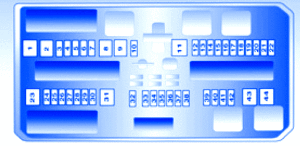

Vauxhall Insignia Primary 2007 Fuse Panel/Board – Fuse Symbol Map
