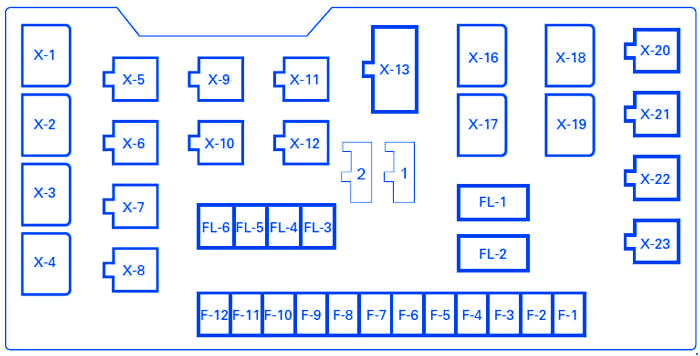

| F1 | — | — | — |
| F2 | 10 | 02 SENSOR HEATER | Oxygen sensor |
| F3 | 15 | HORN HAZARD | Horn, Horn relay, Horn SW, Hazard warning SW, Flasher unit, Anti-theft horn, Anti-theft controller |
| F4 | 15 | H/LAMP-LH | Headlight (LH), High beam indicator light, Dimmer-passing SW, Cornering light SW, Fog light SW, Fog light relay, Cornering light, Cornering light relay |
| 10 | H/LAMP-LH (HI | Left−hand headlight (high beam) |
| F5 | 15 | H/LAMP-RH | Headlight (RH), Dimmer-passing SW |
| 10 | H/LAMP-RH (HI) | Right−hand headlight (high beam) |
| F6 | 10 | H/LAMP-LH (LOW) | Left−hand headlight (low beam) |
| F7 | 10 | H/LAMP-RH (LOW) | Right−hand headlight (low beam) |
| 15 | ANTI-THEFT | Anti-theft alarm system |
| F8 | 15 | FRTFOG | Fog light, Fog light relay |
| 20 | FOG | Fog light, Fog light relay |
| F9 | 20 | ABS | Hydraulic unit, Rear wheel anti-lock brake controller, Electronic brake control module |
| F10 | 15 | FUEL PUMP | Fuel pump |
| F11 | 10 | TAIL-LH | Tail light left-hand side |
| F12 | 15 | TAIL | Tail relay, Lighting SW, FRT side maker light, Parking light, Taillight, Trailer harness connector, Illumination controller, Illumination light, Glove box SW, License plate light, A/T shift indicator control unit |
| 10 | TAIL-RH | Tail light right-hand side |
| Fusible Link |
| FL1 | 80 | MAIN | Battery |
| FL2 | 50 | KEY SW | Ignition switch, starter |
| FL3 | 50 | ECM | Engine Control Module Main Relay |
| FL4 | 30 | CONDENSER FAN | Condenser Fan |
| FL6 | 40 | (ABS 4-WHEEL ONLY) | ABS Hydraulic Unit, F9 Fuse (ABS)
Circuit Breaker |
| C/B-1 | — | — | — |
| C/B-2 | 30 | (P/W, P/S, S/R) | Power window relay, Power window SW, Power window motor, Sun roof motor, Sun roof control unit, Sun roof SW, Safety stop SW, Limit SW, Power seat switch, Front tilt motor & SW, Rear tilt motor & SW, Slide motor, Recliner motor & SW |
