Vauxhall Meriva B 2012 Load Compartment Fuse Box / Block Circuit Breaker

Vauxhall Meriva B 2012 Load Compartment Fuse Box / Block Circuit Breaker
Vauxhall Meriva B 2012 Load Compartment Fuse Box / Block Circuit Breaker

NumberCircuit
1Adaptive forward lighting
2
3
4
5
6Rear power window, right
7Adaptive forward lighting
8Trailer module, Trailer socket
9Seat, lumbar support, left
10Rear power window, left
11Park assist
12Electrical sunblind
13
14Heated front seats
15Trailer module
16Seat, lumbar support, right
17

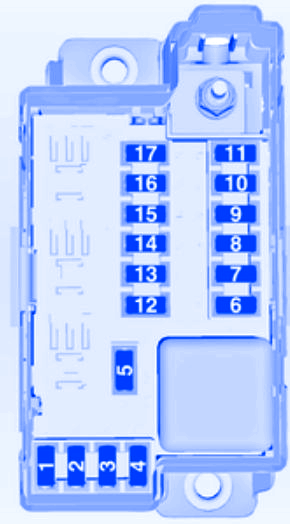

Vauxhall Meriva B 2012 Load Compartment Fuse Panel / Board – Fuse Symbol Map
