| Number | Fuse | Ampere ratting [A] | Description |
|---|---|---|---|
| C1 | 10 | STARTER RELAY | Starter relay, Clutch start SW (M/T), Mode SW (A/T), Anti-theft controller, DERM (SRS) |
| C2 | 15 | (SEAT HEATER) | Seat heater SW (LH & RH), Seat heater (LH & RH) |
| C3 | 15 | TURN BACK | Transmission control module, Turn signal SW, Front turn signal light, Rear turn signal light, Turn signal indicator light, Flasher unit, Cornering light relay, Backup light, Backup light SW (M/T), Mode SW (A/T), A/T shift indicator control unit, Lighting SW, A/T shift lock control unit, A/T shift indicator, Cruise control unit, Cancel SW |
| 10 | TURN BACK | Transmission control module, Turn signal SW, Front turn signal light, Rear turn signal light, Turn signal indicator light, Flasher unit, Cornering light relay, Backup light, Backup light SW (M/T), Mode SW (A/T), A/T shift indicator control unit, Lighting SW, A/T shift lock control unit, A/T shift indicator, Cruise control unit, Cancel SW | |
| C4 | 10 | ELEC. IGN. | Cruise control unit, Rear defogger SW, Rear defogger relay, Rear defogger SW indicator light, Clutch SW (M/T), Transmission SW-1, 2 (M/T), Transmission SW-3, 4 (M/T), Cancel SW (Combination SW), Cruise control main SW, Cruise control main relay, Cruise control indicator light, Cruise control SW, Door mirror, Door mirror defogger SW, A/T shift lock control unit, Power window relay, Electronic brake control module, Transmission control module, G sensor, Upshift-2 relay, Upshift indicator (Meter) |
| C5 | 15 | FRT WIPER & WASHER | Windshield wiper and washer SW, Windshield wiper motor, Windshield washer motor, Windshield wiper intermittent relay |
| C6 | 10 | RR WIPER & WASHER | Rear wiper & washer SW, Rear washer motor, Rear wiper motor, Rear wiper intermittent relay |

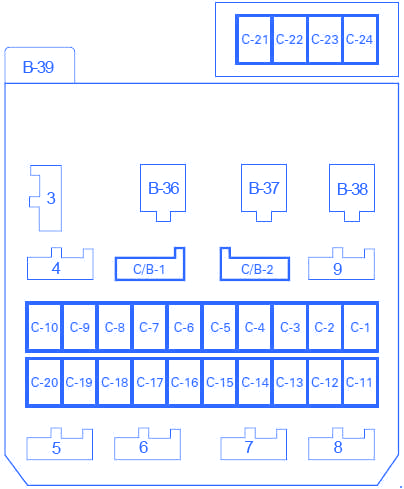

Vauxhall Monterey Engine Compartment Fuse Panel / Board – Fuse Symbol Map
| Number | Fuse | Ampere ratting [A] | Description |
|---|---|---|---|
| C7 | 10 | (H/LAMP WIPER) | Headlight wiper SW, Headlight wiper motor, Headlight washer motor, Headlight wiper timer |
| C8 | 15 | ENGINE | Generator, ECM main relay, V.S.V; EGR, V.S.V: canister, V.S.V: intake air (DOHC) |
| C9 | 15 | IGN. COIL | Ignition control module, Engine control module |
| 15 | FUEL CUT | Fuel Cutout (4JG2) | |
| C10 | 10 | METER GAUGE | Vehicle speed sensor, Remind Buzzer, Meter and gauge (Voltmeter, Engine coolant temperature gauge, Tachometer, Speedometer, Oil pressure gauge, Fuel gauge), Indicator and warning light (Anti-lock brake system, Rear wheel anti-lock, Seat belt, check engine, Low fuel, 4WD, Oil pressure, Upshift, Brake system, Charge, A/T oil temp, Cruise control indicator light, Check trans indicator light, Power drive indicator light, Winter drive indicator light), 4WD SW, Parking brake SW, Seat belt SW, Brake differential SW Electronic brake control module, Engine control module, Rear wheel anti-lock brake controller |
| C11 | 10 | (AUDIO[ACC]) MIRROR | Audio, Door mirror, Door mirror control SW, Door mirror folding SW, Digital clock, Speaker |
| C12 | 20 | CIGARETTE | Cigarette lighter |
Vauxhall Monterey Engine Compartment Fuse Panel / Board – Fuse Symbol Map
| Number | Fuse | Ampere ratting [A] | Description |
|---|---|---|---|
| C13 | 10 | ANTI THEFT | Anti-theft controller |
| C14 | 15 | STOP A/T CONT | Stoplight SW (w/o cruise control), Brake SW (w/cruise control), Rear wheel anti-lock brake controller, Stoplight, Transmission control module, Electronic brake control module, Trailer harness connector, Cruise control unit, A/T shift lock control unit, Lockup off relay |
| C15 | 20 | (AUDIO[BJ) | Horn, Horn relay, Horn SW, Hazard warning light SW, Flasher unit, Anti-theft horn, Hazard warning light, Audio |
| 20 | TELEPHONE | Telephone | |
| C16 | 10 | CLOCK[B] ROOM | Digital clock, Audio, Dome light, Map light, Luggage room light, Courtesy light, Door SW (Front, rear, tail gate), Antenna, Anti-theft controller, Key remind SW, Seat belt, Key & light remind buzzer |
| C17 | 25 | RR DEFOG | Rear defogger, Rear defogger relay |
| C18 | 20 | (DOOR LOCK) | Anti-theft indicator light, Front door lock & power window SW, Door lock key SW, Door lock actuator (Front & rear) |
| C19 | 25 | BLOWER | Blower motor, Blower resistor Fan SW |
| C20 | 10 | (AIR CON) | Pressure SW, A/C thermostat relay, A/C compressor relay, Magnetic clutch (A/C compressor), A/C SW, Electro thermostat, Fan SW |
| C21 | 10 | SRS-1 | SRS warning light (Meter) |
| C22 | 10 | SRS-2 | DERM |
| C23 | 10 | SRS-3 | Passenger inflator module, DERM |
| C24 | 10 | SRS-4 | Dual pole arming sensor, DERM, SRS coil assembly, Driver inflator module |
Vauxhall Monterey Engine Compartment Fuse Panel / Board – Fuse Symbol Map
| Symbol | Description |
|---|---|
| Diode | |
| 3 | Dome Light Anti-theft |
| 4 | Anti-theft (DOHC) |
| 5 | Anti-theft Light Remind |
| 6 | Mode Switch (DOHC) |
| 7 | Cruise Control RWAL (Rear Wheel Anti-Lock) |
| 8 | — |
| 9 | Electronic Brake Control Module (DOHC) |
| Symbol | Relay Map |
|---|---|
| Relay | |
| B36 | Heater and A/C |
| B37 | Power Window |
| B38 | Rear Defogger |
| B39 | Flasher Unit |
