Volkswagen Beetle 6Cyl 3000 2004 Instrument Cluster Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| 1 | Heated Washer Nozzles, Heated Outside Mirrors | 10A |
| 2 | Turn Signal System | 10A |
| 3 | Illumination | 5A |
| 4 | License Plate Lght | 5A |
| 5 | Comfort System | 7.5A |
| 6 | Central Locking System | 5A |
| 7 | Back-up Lights | 10A |
| 8 | Telephone System | 5A |
| 9 | ABS | 5A |
| 10 | Engine Control, Gasoline | 10A |
| 11 | Instrument Cluster, Shift Lock | 5A |
| 12 | B+ (Battery Positive Voltage) for DLC | 7.5A |
| 13 | Brake Lights | 10A |
| 14 | Interior Lights, With Central Locking | 10A |
| Interior Lights, Only | 5A | |
| 15 | Instrument Cluster, Automatic Transmission | 5A |
| 16 | A/C-Clutch, Electrical Water Pump | 10A |
| 17 | Door Lock Heater | 7.5A |
| 18 | Right Headlight, High Beam | 10A |
| 19 | Left Headlight, High Beam | 10A |
| 20 | Right Headlight, Low Beam | 15A |
| 21 | Left Headlight, Low Beam | 15A |
| 22 | SideMarker Lights, Right | 5A |
| 23 | Sidemarker Lights, Left | 5A |

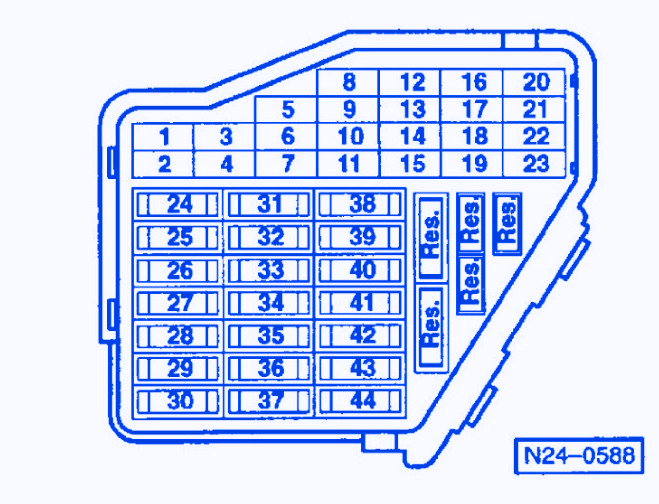

Volkswagen Beetle 6Cyl 3000 2004 Instrument Cluster Fuse Panel/Board – Fuse Symbol Map
