Volkswagen Beetle Thirteenfold 2005 Fuse Box/Block Circuit Breaker Diagram

Volkswagen Beetle Thirteenfold 2005 Fuse Box/Block Circuit Breaker Diagram

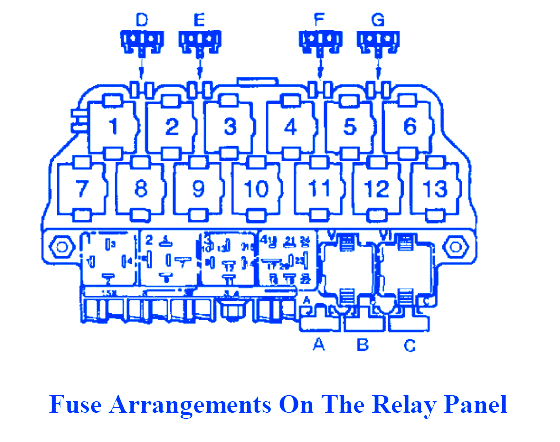

FUSE SYMBOLFUSE MAP
AFuse For Power Window (Red Connector)
BOpen
CFuse For Heated Power Seat (Black Connector)
DOpen
ECircuit Breaker For Power Windows
FFuse For Anti-Theft Alarm Turn Signal Lights, 15A. (S111)
GFuse For Anti-Theft Alarm Horn, 15A (S144)

Volkswagen Beetle Thirteenfold 2005 Fuse Panel/Board – Fuse Symbol Map
