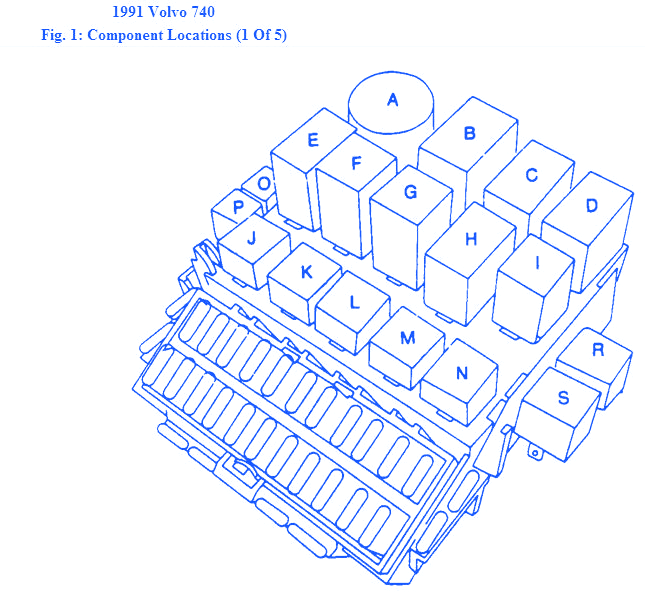

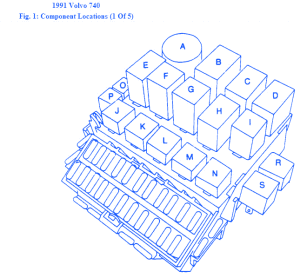

Volvo 740 1991 Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| A | Bulb Failure Warning Relay |
| B | Seat Belt Reminder Relay |
| C | Intermittent Wiper Relay (Front) |
| D | Intermittent Wiper Relay (Rear) |
| E | Fuel Injection System Relay |
| F | Fog Light Relay (Front) |
| G | Turn Signal/Hazard Flasher Relay |
| H | Not Used |
| I | Overdrive Relay |
| J | Power Window/Seat Heater Relay |
| K | Headlight Relay |
| L | Central Locking System Relay |
| M | Fog Light Relay (Rear) |
| N | Not Used |
| O | Not Used |
| P | Not Used |
| R | Not Used |
| S | Not Used |
Volvo 740 1991 Fuse Panel/Board – Fuse Symbol Map
