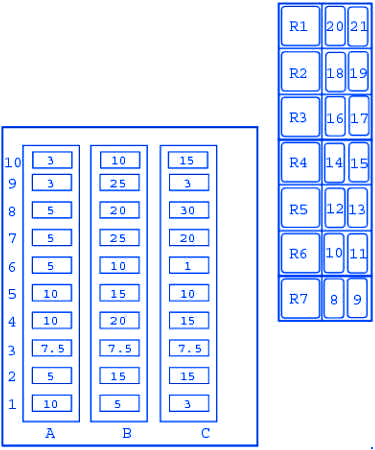

| A1 | 10 | Junction box, hydraulic tools |
| A2 | 5 | Engine shut off system |
| A3 | 7,5 | Direction indicators |
| A4 | 10 | Creep speed transmission |
| A5 | 10 | Manual transmission |
| A6 | 5 | Airmaster (if fitted) |
| A7 | 5 | Shovel reset, Smooth ride system |
| A8 | 5 | Brake lights (secondary) |
| A9 | 3 | Right hand side lights |
| A10 | 3 | Left hand side lights |
| B1 | 5 | Tachometer, Gauges |
| B2 | 15 | Front horn, Front washer / wiper |
| B3 | 7,5 | Rear horn |
| B4 | 20 | Auxiliary power socket |
| B5 | 15 | Rear washer / wiper |
| B6 | 10 | Brake lights (primary) |
| B7 | 25 | Rear work lights |
| B8 | 20 | Lighting, headlights |
| B9 | 25 | Front work lights |
| B10 | 10 | Beacon |
| C1 | 3 | Rear fog light |
| C2 | 15 | Headlight dip beam |
| C3 | 7,5 | Sidelights |
| C4 | 15 | Hazard lights |
| C5 | 10 | Wiper, Face level fan, Interior light |
| C6 | 1 | Radio, Hourmeter |
| C7 | 20 | Thermostart |
| C8 | 30 | Heater, Air conditioning |
| C9 | 3 | Starter relays |
| C10 | 15 | Headlight main beam |
