JCB 3CX Relay Fuse Box / Block Circuit Breaker Diagram

Categories:

Fuse Box Diagram, JCB

by Pad Rust

JCB 3CX Relay Fuse Box / Block Circuit Breaker Diagram
JCB 3CX Relay Fuse Box / Block Circuit Breaker Diagram

No.Relays
FD1Forward HI/LO
FD2Forward
FE1Reverse HI/LO
FE2Reverse
FF1Interlock
FF2Drive
FG1Blank
FG2Transmission dump
FH1Auto 2WD
FH24WB

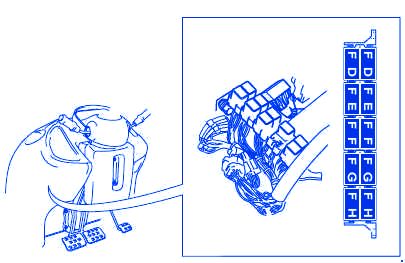

JCB 3CX Relay Fuse Panel / Board – Fuse Symbol Map
