Renault Capture Prinary 2008 Fuse Box/Block Circuit Breaker Diagram

FUSE	ALLOCATION
1	Power-Assisted Steering
2	Injection
3	Airbag
4	Automatic Gearbox, LPG
5	Dipped Beam Headlights
6	Front Fog Lights, Front Side Lights, Main Beam Headlights
7	Horn
8	Left-hand main Beam Headlight
9	Right-Hand main Beam Headlight
10	Right-Hand Dipped Beam Headlight
11	Left-Hand Dipped Beam Headlight
12	Left-Hand side Lights
13	Right-Hand Side Lights
14	Rear Windscreen Wiper
15	Empty Location
16	Headlight Beam Adjustment
17	Daytime Running Lights
18	Brake Lights
19	Electric Door Mirrors
20	ABS, ESP
21	Interior Lighting
22	Vehicle On/Off Button
23	Radio
24	Passenger Compartment ECU
25	Passenger Compartment ECU
26	Direction Indicator Lights
27	Central Locking of Opening Elements
28	UCE Energy Management
29	UCE Energy Management
30	Alarm
31	Instrument Panel
32	Cigarette Lighter
33	Rear Fog Lights
34	Front Seat Heating
35	Rear Screen De-Icer
36	Towbar
37	Front Windscreen Wiper
38	Empty Location
39	Front Windscreen Wiper

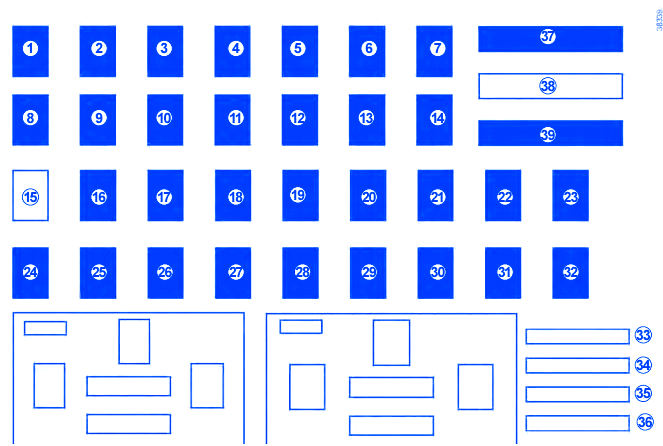

Renault Capture Prinary 2008 Fuse Panel/Board – Fuse Symbol Map
