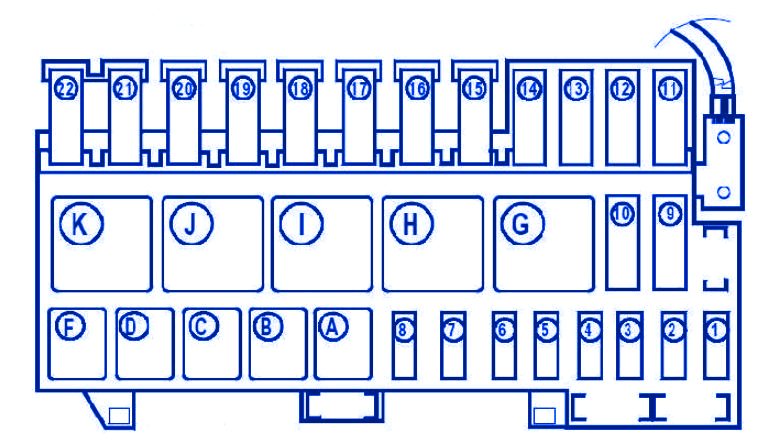

Renault Scenic 1996 Engine Compartment Fuse Box / Block Circuit Breaker
Renault Scenic 1996 Engine Compartment Fuse Box / Block Circuit Breaker
Number Ampere rating [A] Description F1 30 Fan and diesel heater F2 30 Injection F3 7,5 Air conditioning compressor F4 3 Liquid petroleum gas F5 7,5 Liquid petroleum gas F6 7,5 Automatic gearbox computer – ignition F7 7,5 Injection safety – diesel heater – air bag computer F8 7,5 Liquid petroleum gas F11 70 Pre-heating and thermoplunger F12 — — F13 — — F14 40 Double speed fan and diesel heater 50 F15 — — F16 60 ABS computer F17 — — F18 60 Heated windscreen F19 40 Air conditioning fan assembly F20 60 Dashboard supply F21 60 Dashboard supply F22 60 Dashboard supply
Symbol Relay Map Relay A Fuel pump Diesel heater B Injection locking C Altimetric corrector Thermoplunger no. 1 D Single speed fan assembly relay 100W-180W Air conditioning compressor F Automatic gearbox ignition G — H — I Thermoplunger no. 2 J High speed fan assembly 340/550W K Low speed fan assembly 340/550W Diode D9 Pilot diode Low Speed fan via air conditioning F8Q 790 D10 Free wheel air conditioning compressor
Renault Scenic 1996 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
