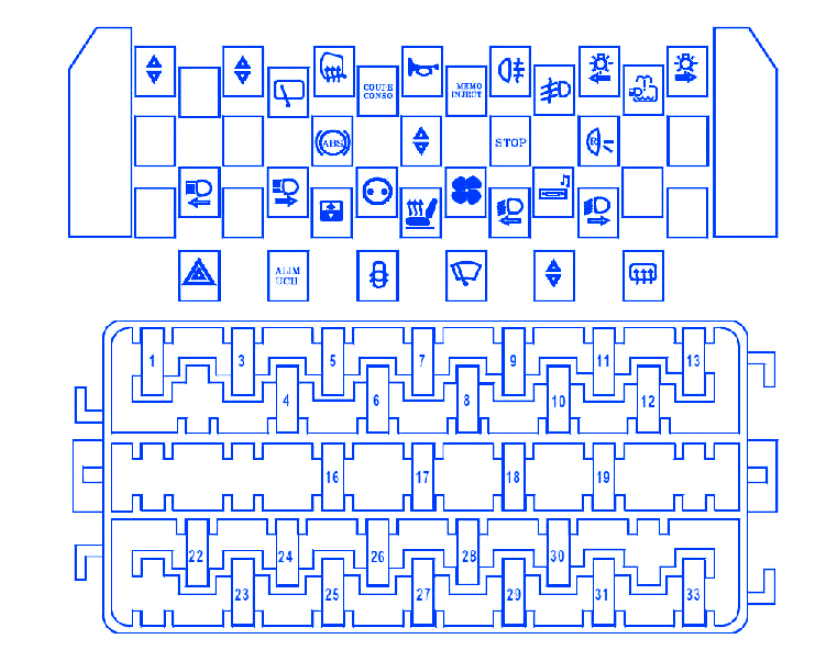

Renault Scenic 1996 The Dashboard Fuse Box / Block Circuit Breaker Diagram
Renault Scenic 1996 The Dashboard Fuse Box / Block Circuit Breaker Diagram

NumberAmpere rating [A]Allocation
F125Rear left electric window riser
F25Central door locking switch (Mexico)
F325Rear right electric window riser
F415Electric window wiper (only in 4×4 version)
F57,5Electric rear-view mirror de-icing
F615Consumer cut-out – Electric rear-view mirrors – Clock – Radio -Radio display – Navigation aid – Auto-regulated heating and ventilation – Tyre pressure detector- Electric aerial (E64)
F715Horn
F85Injection computer – Fan assembly relay – Diagnostic socket -Automatic gearbox computer – Instrument panel
F95Rear fog light
F1015Front fog lights
F117,5Left side lights
F1210Headlight washers
F137,5Right-hand side lights
F14——
F15——
F165ABS computer
F1725Passenger electric window winder
F1815Brake lights – Daytime running lights – Authorisation/inhibiting rear window winder control – Diagnostic socket – Instrument panel – Flashing warning lights on driving school control – + after ignition relay – Automatic gearbox performance/economy relay -Seatbelt and opening elements warning light – Heated windscreen relay

Renault Scenic 1996 The Dashboard Fuse Panel / Board – Fuse Symbol Map

NumberAmpere rating [A]Allocation
F1915UCH (+ after ignition reference and Screen wiper supply, park position and washer pump) – Reversing lights – Tyre pressure detector- Electric hood computer (E64)
F20——
F21——
F2210Left-hand main beam headlight
F23——
F2410Right-hand main beam headlight
F2520Sunroof – Auto-regulated heating and ventilation
F2610Accessories sockets (2 sockets in 4×4)
F2715Heated seats
F2820Passenger compartment heating and ventilation system
F2910Left-hand dipped headlight
F3015Clock – Cigarette lighter – Daytime running lights function – Radio – Radio display – Navigation assistance
F3110Right-hand dipped headlight
F3220Engine cooling fan (Mercosur S. America)
F33——
F15Indicators – Hazard lights
FB5Passenger compartment control unit supply
FC20Central door locking
FD20Windscreen wiper
FE25Driver’s one-touch electric window riser (from equipment 2)
FF30Rear screen de-icer – De-icing rear-view mirrors

Renault Scenic 1996 The Dashboard Fuse Panel / Board – Fuse Symbol Map
