| Number | Description |
|---|---|
| 1 | Relay + after ignition (sunroof and heated seats) |
| 2 | Electric rear windows authorisation |
| A | Front fog lights |
| B | Liquid petroleum gas fuel gauge 4X4 Version: Headlight washers |

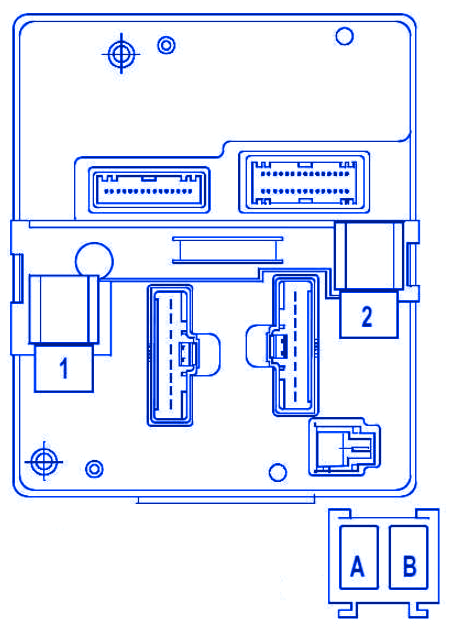

Renault Scenic 1996 Passenger Compartment Relay Fuse Panel / Board – Fuse Symbol Map
