| No. | Function/component |
|---|---|
| F12 | Right low beam |
| F13 | Left low beam / headlight range adjustment |
| F31 | Fusebox relays / body control unit relays |
| F32 | Courtesy lights |
| F36 | Diagnostic connector / climate control system / Infotainment system / tyre pressure monitoring system / alarm siren |
| F37 | Instrument panel / braking system |
| F38 | Central locking system |
| F43 | Windscreen washer system |
| F47 | Power windows |
| F48 | Power windows |
| F49 | Exterior mirrors / Infotainment system / parking assist / tyre pressure monitoring system / instrument illumination / rain sensor |
| F51 | Infotainment system / braking system / clutch / interior heater |
| F53 | Instrument panel |
| F94 | Power outlet load compartment |
| F95 | Cigarette lighter / power outlet |
| F96 | Cigarette lighter / power outlet |
| F97 | Heated front seat |
| F98 | Heated front seat |

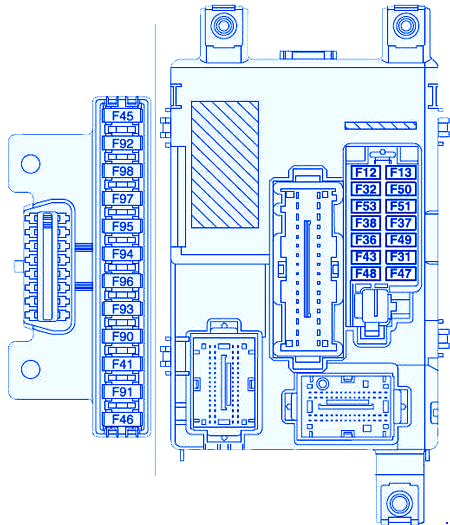

Vauxhall Combo D 2011 Instrument panel Fuse Panel / Board – Fuse Symbol Map
