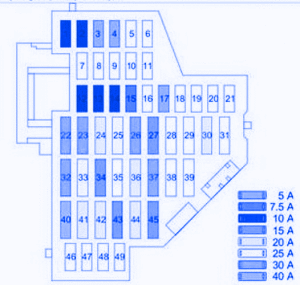

Volkswagen CC 2007 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 32 | 30A | 110V-230V Socket |
| 33 | 25A | Sunroof Control Unit |
| 34 | 15A | Driver's Seat Adjustment Switch |
| 35 | - | Not Used |
| 36 | 20A | Headlight Washer Relay |
| 37 | 30A | Heated Passenger's Seat control Unit |
| 38 | - | Not Used |
| 39 | - | Not Used |
| 40 | 40A | Air Blower |
| 41 | 20A | Onboard Supply Control Unit |
| 42 | 20A | Rear Cigarette Lighter |
Volkswagen CC 2007 Fuse Panel/Board – Fuse Symbol Map
