Volkwagon CC 1983 Mini Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | FUSE MAP |
|---|---|---|
| 1 | 8A | Turn Signals Speedometer Warning Lights Fuel Gauge |
| 2 | 8A | Windshield Wipers Brake Warning Light Automatic Stick Shift Warning Lights Rear Window Defroster Switch |
| 3 | 8A | Brake Lights, Horn |
| 4 | 8A | Emergency Flasher |
| 5 | 8A | Unassigned |
| 6 | 8A | Interior Light, Ignition Buzzer |
| 7 | 8A | Left High Beam, High Beam Warning Light |
| 8 | 8A | Right High Beam |
| 9 | 16A | Left Low Beam |
| 10 | 8A | Right Low Beam |
| 11 | 16A | Left Tail Light |
| 12 | 8A | Right Tail Light, side Marker Lights, License Plate Light |

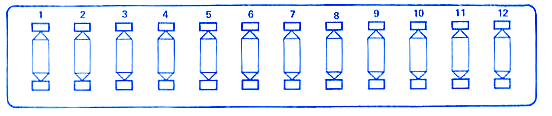

Volkwagon CC 1983 Mini Fuse Panel/Board – Fuse Symbol Map
